NEVB-NID1100 1.5 V to 5.5 V, 1 A, Ideal Diode with Forward Voltage Blocking Evaluation Board

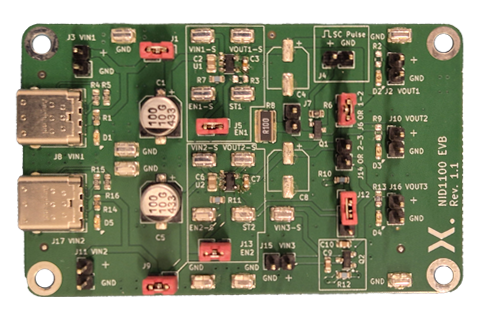

The NEVB-NID1100 evaluation board is a two-layer PCB equipped with two NID1100 ideal diodes and one PMOS transistor. It allows users to explore the device's behavior under various application conditions.

Key features & benefits

  • Input operating voltage range (VIN) 1.5 V to 5.5 V
  • Continuous output current 1 A
  • Three supply inputs VIN1, VIN2, VIN3
  • Two optional USB-C supply inputs for VIN1 and VIN2
  • Access to all device pins

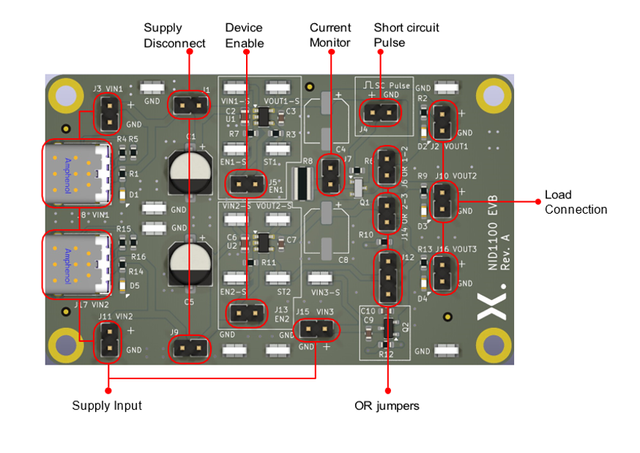

  • Use case selection by means of jumpers
  • Short circuit testing

板上的產品 (1)

Type number Description Status Quick access
NID1100GV 1.5 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production

板上的產品 (1)

Type number Description Status Quick access
NID1100GV 1.5 V to 5.5 V, 1.5 A input polarity protected, low quiescent current ideal diode Production

文檔 (1)

文件名稱 標題 類型 日期
UM90044 NID1100, 1.5 V to 5.5 V, 1 A, ideal diode with forward voltage blocking evaluation board User manual 2025-01-17
