LDO regulators (greater than 30 V)

Flexible regulation for always-on components

Automotive and industrial applications often use input rail voltages of 12 V, 24 V or even higher. Nexperia’s 40 V ultra-low Iq linear & low-dropout (LDO) regulators are ideal for powering always-on components, such as microcontrollers (MCUs) and Controller Area Network (CAN) or Local Interconnect Network (LIN) transceivers in standby or CAN-wake systems. Our general LDO offers very low quiescent current, while tracking LDOs offer high output accuracy and full protection features. Various package options (HTSSOP, DFN, SOT, etc.) are available for flexible system design according to thermal requirements and PCB size.

Key features and benefits

  • Wide input range up to 40 V
  • High output accuracy
  • Low quiescent current to reduce standby power
  • Various packages to support different system requirements

Key applications

  • Automotive applications including cockpit, body control module (BCM), Advanced Driver-Assistance System (ADAS), lighting, etc.
  • Industrial applications
  • Motor driver modules
  • Consumer electronics, mobile phones, tablets, wearables

產品

型號 描述 狀態 快速訪問
NEX90515-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator ACT
NEX90515APA-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90515BPA-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90X30-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator ACT
NEX90230APA-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90230BPA-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90530APA-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90530BPA-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX91207-Q100 Automotive 70 mA, 40 V tracking LDO with 5 mV tracking tolerance ACT
NEX91207DE-Q100 Automotive 70 mA, 40 V tracking LDO with 5 mV tracking tolerance Production
NEX91207DF-Q100 Automotive 70 mA, 40 V tracking LDO with 5 mV tracking tolerance Production
NEX90015ADF-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Development
NEX90015ADG-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90015BDF-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Development
NEX90015BDG-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90215AGA-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90215BGA-Q100 150 mA, 40 V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90230AGA-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
NEX90230BGA-Q100 300mA, 40V ultra-low Iq (5.3 μA) low-dropout voltage regulator Production
Visit our documentation center for all documentation

Leaflet (1)
文件名稱 標題 類型 日期
leaflet_NEX90530_Q100_linear_voltage_regulator.pdf LDO leaflet Leaflet 2025-01-13

Marcom graphics (1)
文件名稱 標題 類型 日期

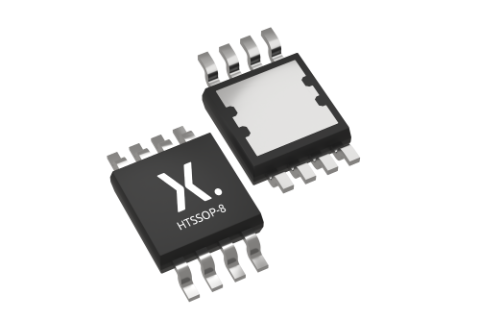

NEX9053OAPA_Q100-Combi-Shadowless.jpg Plastic, thermal enhanced thin shrink small outline package; 8 leads, 0.65 mm pitch, 3 mm × 3 mm × 1.1 mm body Marcom graphics 2024-11-28
